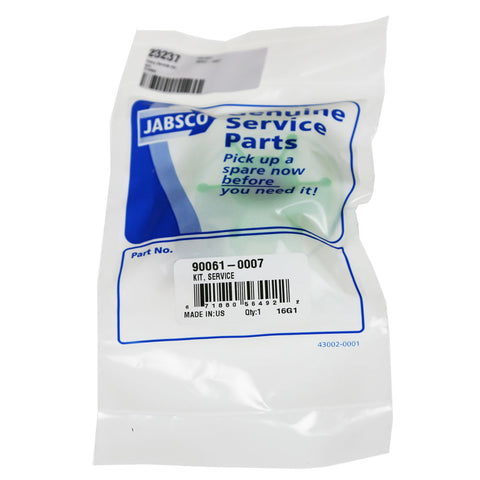

Jabsco Ballast Puppy Impeller Pump Service Kit
Item: S14692
All the essentials to service the Jabsco Ballast Puppy Pump in your boat
This complete service kit includes everything needed to keep your Jabsco Ballast Puppy Pump properly working.
Included:
- Impeller
- O Ring
- Front Cover Screws
- Bushing
This green impeller (Jabsco part #:6303-0107) is the latest generation wakeboard ballast impeller from Jabsco, designed specifically for use in all Jabsco 18220 Ballast Puppy pumps powering automated wakeboard ballast system. This is the OEM impeller for MasterCraft, Correct Craft (Air Nautique), Supra, Moomba, Yamaha, and Centurion and others.
This item is the replacement impeller with service kit. If you're looking for the replacement impeller only, you can get the standalone Jabsco Ballast Puppy Premium Impeller.
If you've been having problems with your system draining or filling correctly, or if water is leaking into or out of the tanks or bags while the pumps are turned off, replacing your existing impeller with a new green compound impeller will solve all of your problems. The green compound impeller is also a replacement for the now discontinued black and yellow compound impellers, so if you're replacing one of those older impellers, this is the part you want.
Impellers are a wear item, so over time, the efficiency of the pump will be reduced as the compound of the impeller breaks down. That means your wakeboard ballast system will take longer to fill and drain than it did when newer. Replacing a damaged or worn out impeller will restore the speed and functionality of your Jabsco Ballast Puppy pump to like new condition. If you have an original Jabsco Ballast Puppy with a black rubber or yellow neoprene impeller this is a great upgrade you can make to increase the speed and functionality of your system.
If you've installed additional bags on top of your factory hard tank ballast system (as is popular in Mastercraft and Nautique wakeboard boats) then this upgrade is essential in order to ensure that both the tank and bag will fill completely, and stay full while wakesurfing and wakeboarding.
MasterCraft Jabsco Ballast Puppy Pump Impeller Replacement Instructions:
Step 1: Remove two of the front cover screws. (Note: Retain the screws for the reinstallation process) Swing the cover up and out of the way to allow access to the impeller location. the impeller may be black, yellow or green depending on the age of the pump.
Step 2: Using needle-nose pliers, pull the old impeller out of the casing.
Step 3: Install the new impeller. (It is intentionally larger than the case. While gently squeezing it in, ensure that the paddle wheels angle in the same direction--counterclockwise--all the way around.)
Step 4: Slide the plate back into place. NO SEALANT IS NECESSARY due to the built-in gasket, tightening the screws should prevent leakage.
Impeller Part # Cross References
This part is a direct replacement for any Jabsco impeller part number that begins with 6303, including: 6303-0007, 6303-0023, 6303-0001, 63003 0003, 6303 0003, 6303 0023 and 6303-003
Pump Part # Cross References
This part is a direct replacement for the impeller in any Jabsco Ballast Puppy pump that begins with 18220, including: 18220-1123, 18670-0123 and 18670-6127
This is the exact same impeller that comes in every Jabsco Ballast Puppy pump from the factory regardless of the boat brand. 6303-0007-P and 6303-0107 are the same part number, the P just denotes that this is an individual pack (which includes the lubricant and o-ring) versus a bulk pack option.
NOTE: The Jabsco Green Ballast Impeller is also the replacement upgrade impeller for the Johnson Ultra Ballast Reversible Pump. Jabsco Ballast Puppy Impellers have been confirmed compatible with Johnson Ultra Ballast Pumps.
- Warranty
- 1 Year
- Manufacturer Part Number
- 90061-0007
- Item#
- S14692
- Warning
