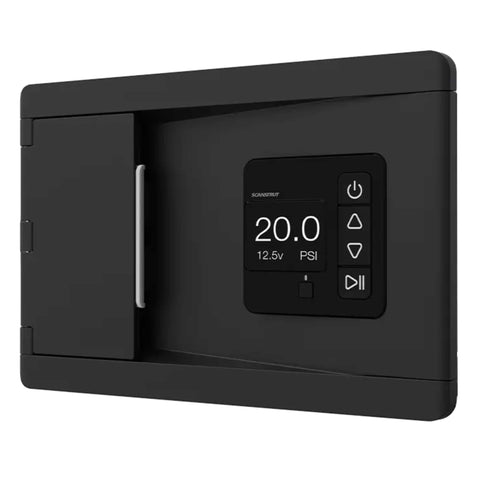

Scanstrut Atmos Integrated Air Pump
Item: S260886

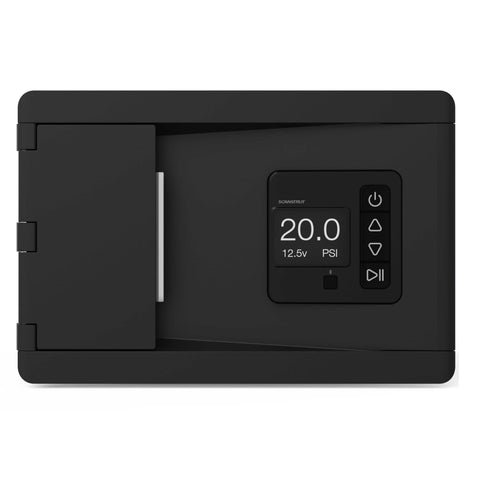

Scanstrut ATMOS 12V Brushless Integrated Air Station
The Scanstrut ATMOS 12V Brushless Integrated Air Station is designed to maximize your time on the water by providing a powerful, waterproof, and fully integrated air supply system. With a simple push of a button, ATMOS inflates paddleboards, towables, and other inflatables with precision, automatically adjusting between high-volume and high-pressure modes. Its durable marine-grade construction ensures long-lasting performance, while the easy-to-use LCD display and soft-touch buttons make operation effortless, even with wet hands.
ATMOS features an innovative two-stage pump system, combining a high-volume, low-pressure (HVLP) fan motor for rapid inflation and a high-pressure, low-volume (HPLV) piston pump for finishing inflatables to the perfect PSI. With an omnidirectional design for even airflow distribution and dual airflow redundancy for reliability, this air station is engineered to perform in harsh marine conditions.
Features:
- Waterproof, brushless air station designed for the marine environment
- Two-stage pump system for optimal inflation efficiency
- Automatically adjusts from HVLP to HPLV at 1.1 PSI
- Soft-touch TPE buttons with a non-slip texture for easy operation
- Bright LCD display with wide viewing angle, even in sunlight
- Live Voltage readout to monitor boat battery health

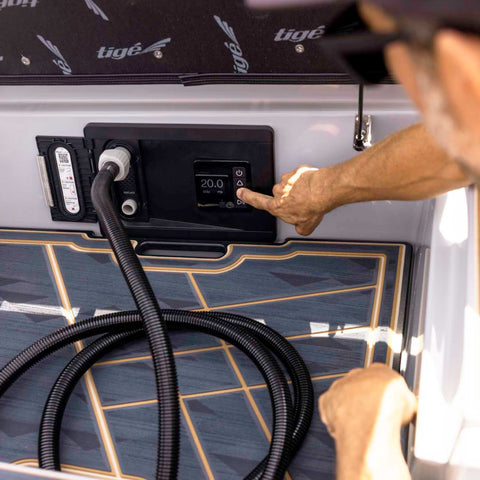

- Compact, shallow design for flexible installation in consoles, seating, or swim platforms

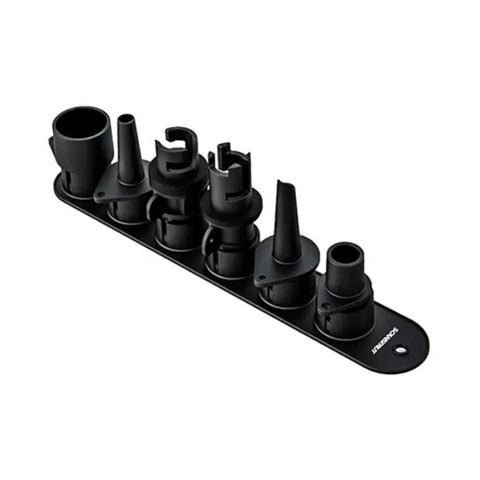

- Supplied with 6 hose attachments, including Boston Valve, C7 Valve, H3/HR Valve, Pinch Valves, and 805 Valve
- Includes a quick-release mounting system with a foam gasket for a secure, waterproof fit

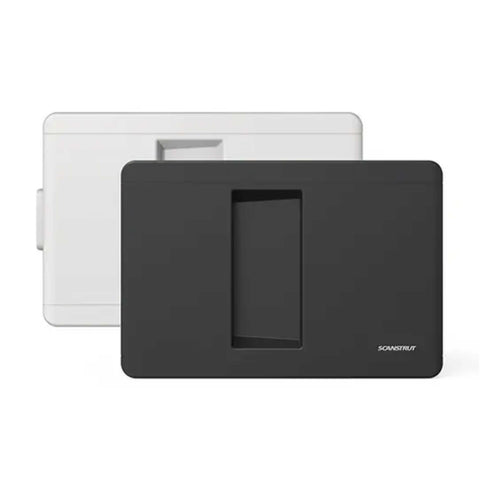

- Heavy-duty sun cover included for long-term durability (black standard, white optional)
Technical Specifications:
- Operating temperature: -20º to +50ºC
- Input voltage: 12V Battery system (11.5 – 14V)
- Max current draw: 12A (140W)
- Max pressure: 20 PSI / 1.37 BAR
-
Airflow rates:
- 0-1 PSI: 350 LPM / 12.3 CFM
- 1-20 PSI: 70 LPM / 2.5 CFM
- Hose options: 2.5M (8ft) standard or optional 3.6M (12ft) for extended reach
- Minimum cavity depth for installation: 110mm / 4.33”
- Power cable length: 500mm (20”) with 14 AWG wire gauge
- Warranty
- 1 Year
- Manufacturer Part Number
- SCAOBA2
- Item#
- S260886
- Warning
